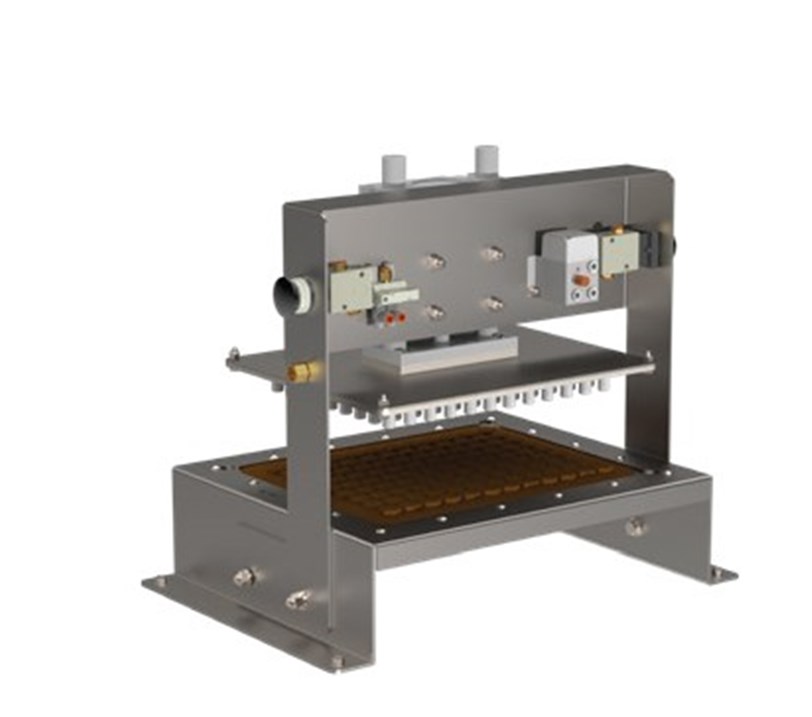

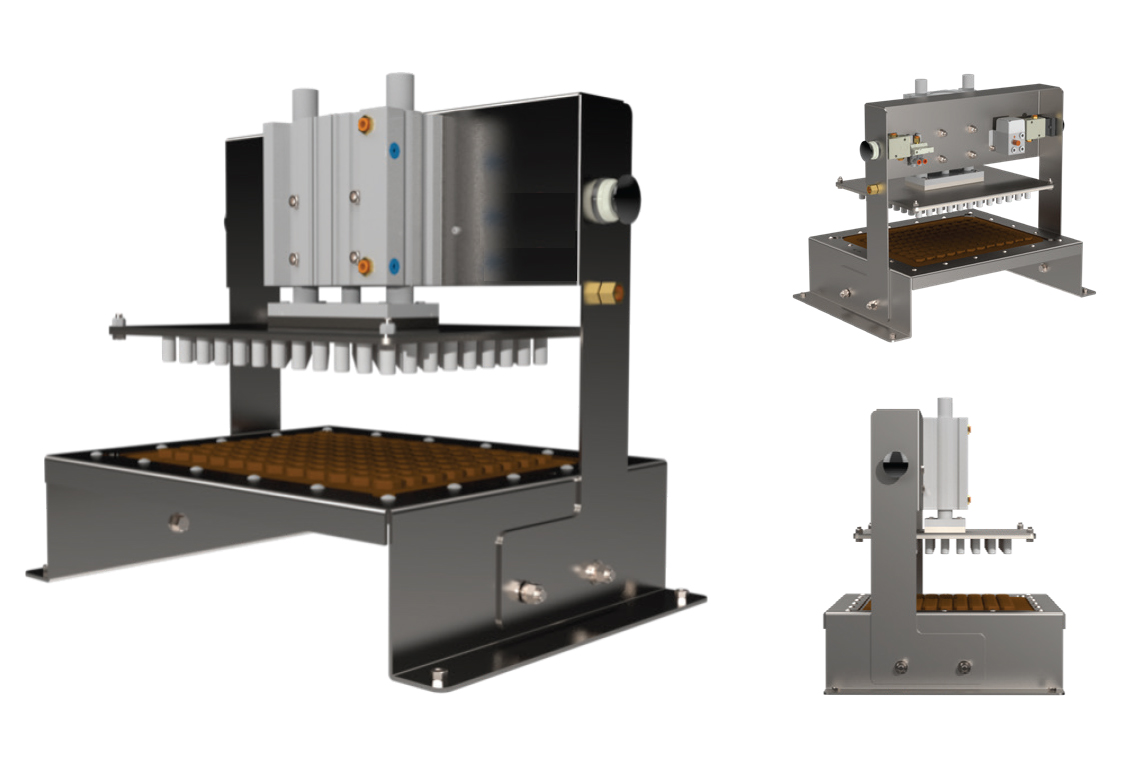

This pneumatic mould demoulder eliminates the labor and strain of demoulding by hand. Fast pneumatic operation mechanically releases or demoulds all cavities in a single 3 - 5 second stroke, dropping your candies or edibles into cooling trays. Eliminate repetitive tasks injuries and increase employee engagement and retention.
Operation is pneumatically driven from your clean and dry plant air source; regulator recommended. Moulds discharge with 40 psi to 75 psi of air pressure (rated to 100 psi of air pressure).
PNEUMATIC AUTOMATED DEMOULDING STATION:
- Demould 100+ cavities in seconds
- Portable table-top design
- Matched die design for safe and accurate demoulding
- Removable depositing die base and head for easy cleaning and sanitation between lots
- Run multiple mould shapes and dimensions (changing dies/stroke distance)
- Vary power and speed between gummies, hard candies, even chocolate without damage
- Two-handed contact release buttons ensure operator safety
- Easy-to-clean stainless steel frame construction with minimal components
This demoulding station is effective with custom or standard moulds. Option to add additional cavities greater than 160 with additional upcharge.
NOTE: Images and technical drawing of your existing mould will need to be provided indicating overall length X width and cavity counts. This item is made to order; no returns. Standard leadtime: 4 to 8 weeks.
