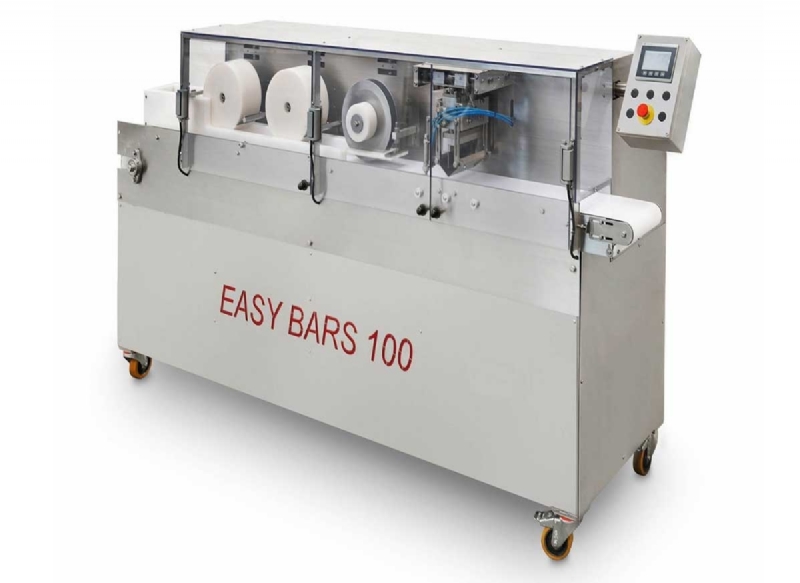

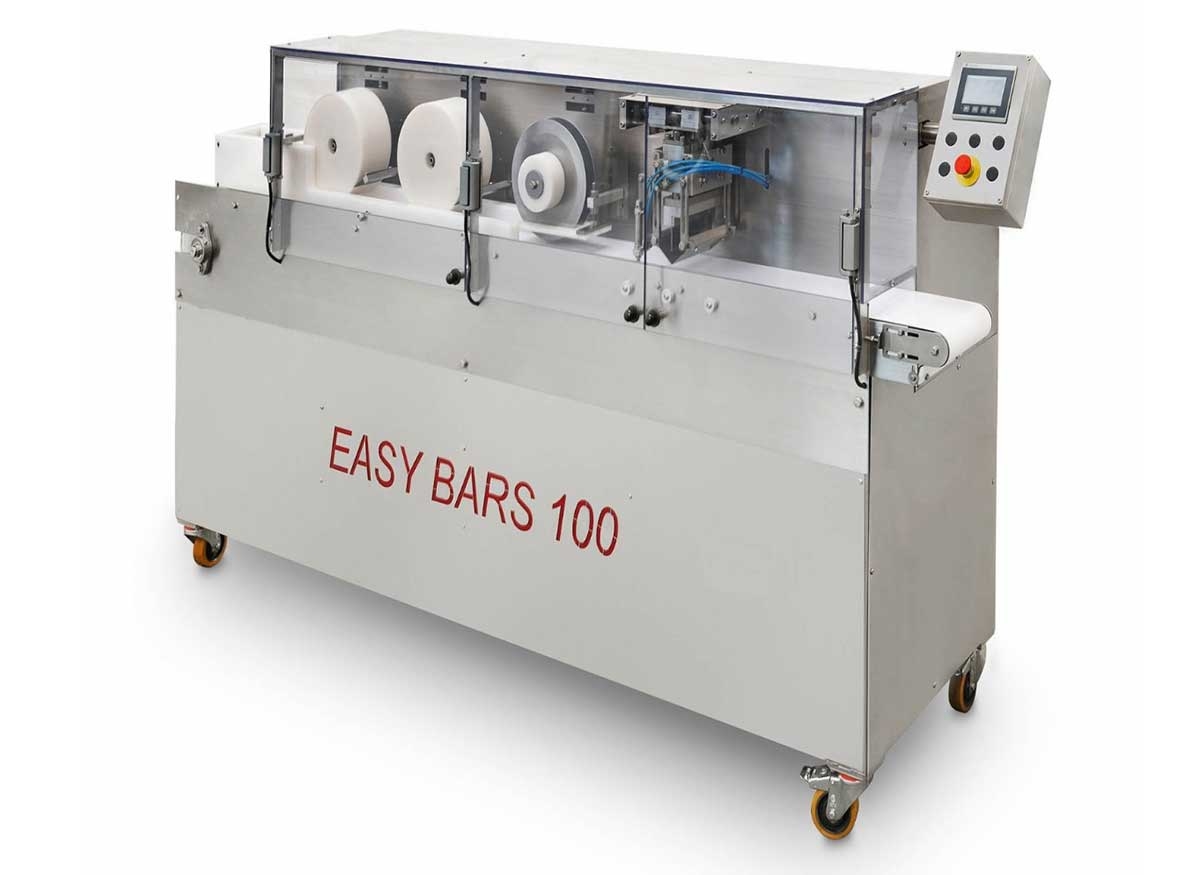

The Easy Bars 100 production machine is suitable for start-up projects to produce ~1200 to 1800 non-sticky cereal bars, soft bars, crisp bars, protein bars or high-protein bars per hour, depending upon the type of bars produced.
The machine provides for the lamination and cutting of the bars, using two Teflon lamination rollers, one for forming the product and the other for smoothing the product. The transversal cutting unit can be a traditional guillotine or ultrasonic in the case of particularly sticky products. Both production speed and bar size is set using the HMI operator panel.
- Made entirely of AISI 304 stainless steel
- Loading hopper and rolling roller made of plastic material suitable for food contact
- Production capacity: 1200 - 1800 bars / hr
- Adjustable line speed and cycle parameters can be set on HMI panel
Product is loaded into a special hopper for processing, then removed from the exit of the machine and placed on a trolley for further processing, like chocolate coating, decoration, or moved directly to a wrapping machine for packaging.
- Fixed bar length to be determined at time of order
- Width of bar adjustable via HMI panel
- Guillotine transversal cutting unit with pneumatic movement
- Optional ultrasonic cutting unit
- Dimensions: 2750 x 750 x 1450 H mm
Customers using the Easy Bars 100 automatic lamination and cutting machine often combine this with two 30 liter C1 Auto Cookers or one C2 Auto Cooker. Contact us at TCF Sales to learn more about automation for cereal and energy type bars.
