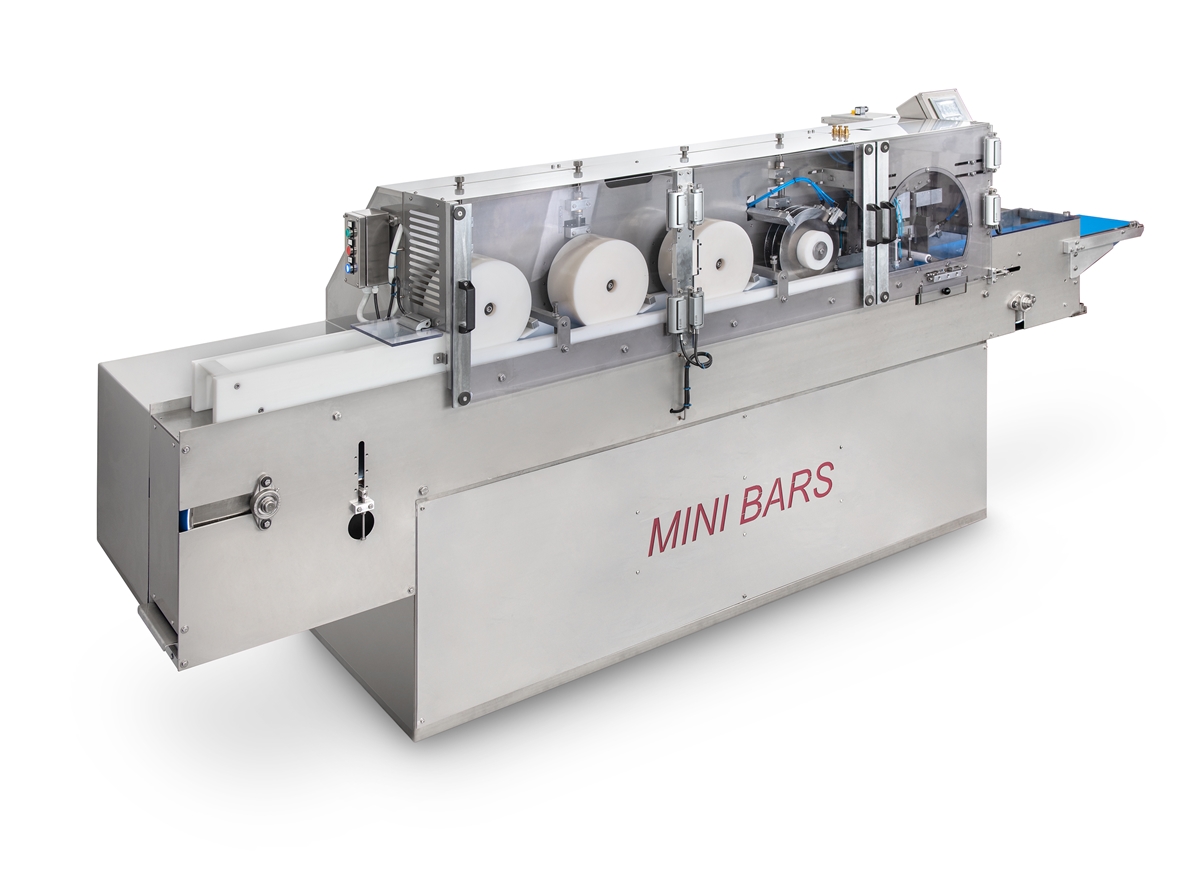

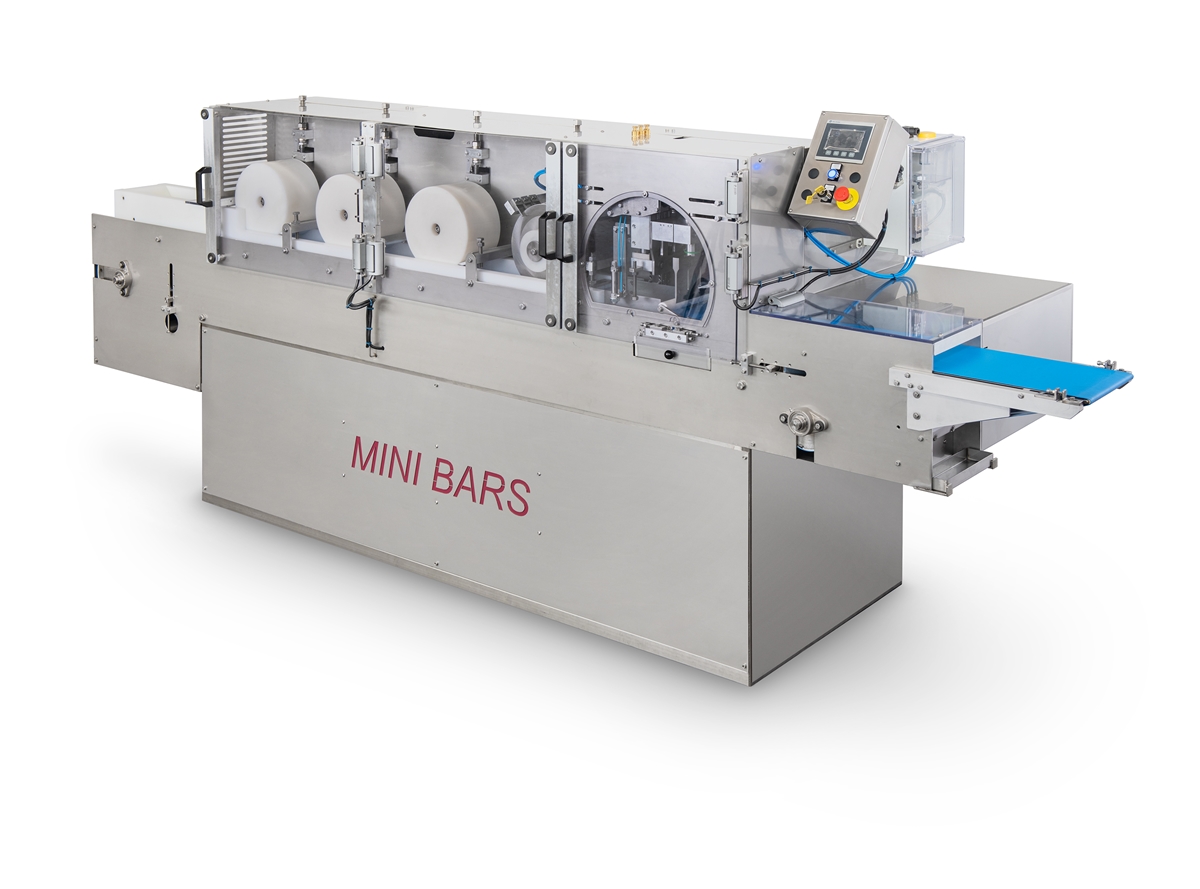

The Mia Food Tech, MINI BARS 130 bar production line is ideal for producing cereal, energy bars, protein bars, etc. with outputs up to 60 bars per minute.
The MINI BARS 130 is a smaller version of larger automatic lines for producing bars with dimensions less than 4 meters in length so that it can also be placed in R&D laboratories.
- Made of AISI304 stainless steel
- Teflon PTFE loading hopper
- Adjustable lamination rollers
- Longitudinal cutting unit with circular blades
- Ultrasonic cross-cutting
- Separating belt for outgoing bars
The HMI operator panel on the MINI BARS machines allows for work cycle management and the possibility of storing recipes and remote connection (optional).
Electrical: 6Kw 3 Ph 400V 50 Hz (can request different voltage)
Dimensions: 800 W x 3900 L x 1500 mm H
Weight: 800 Kg
NOTE: Compressed aire connection with flow rate of ~150-200 liters/minute with minimum pressure of 6 bars is required.
