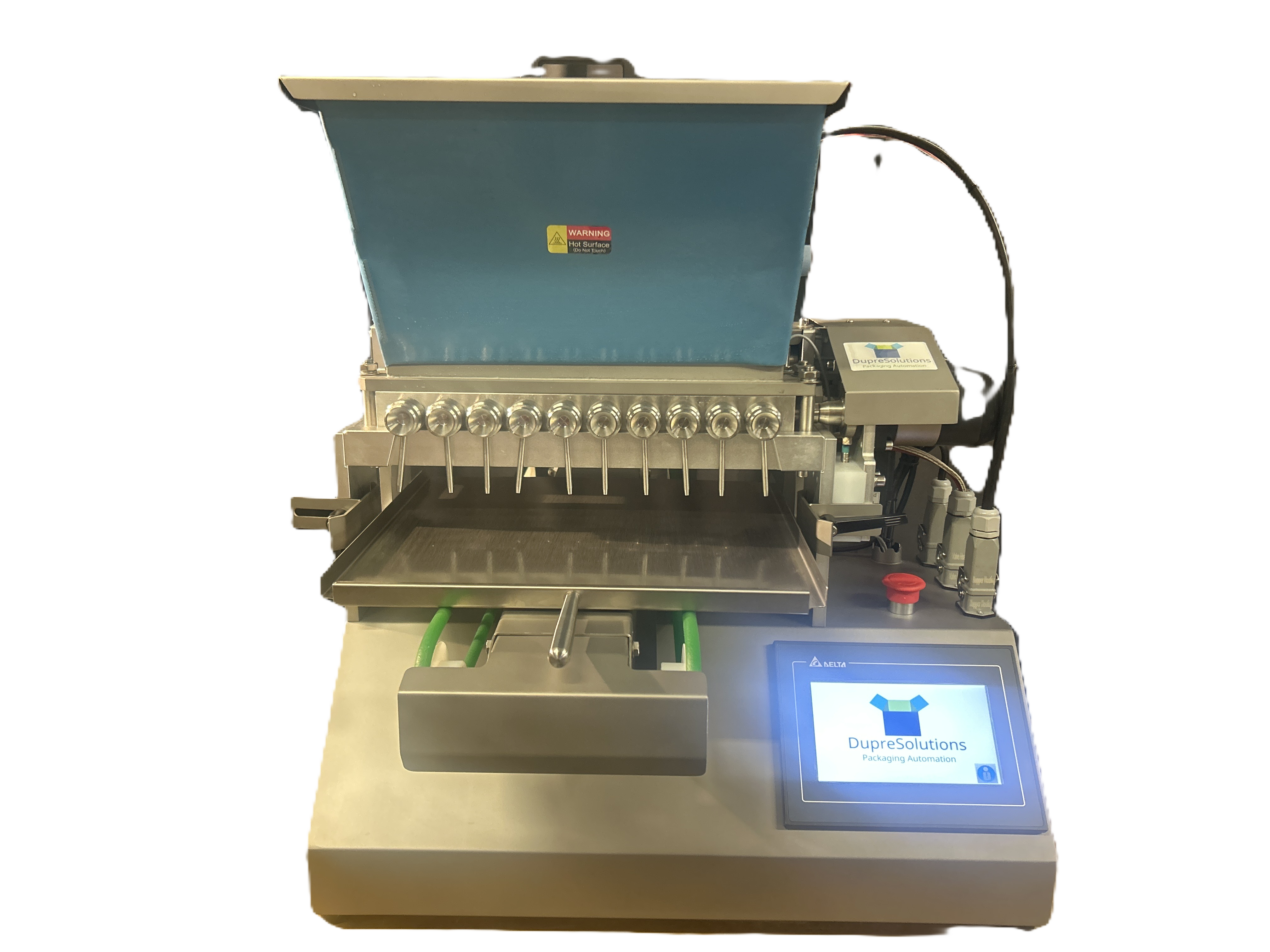

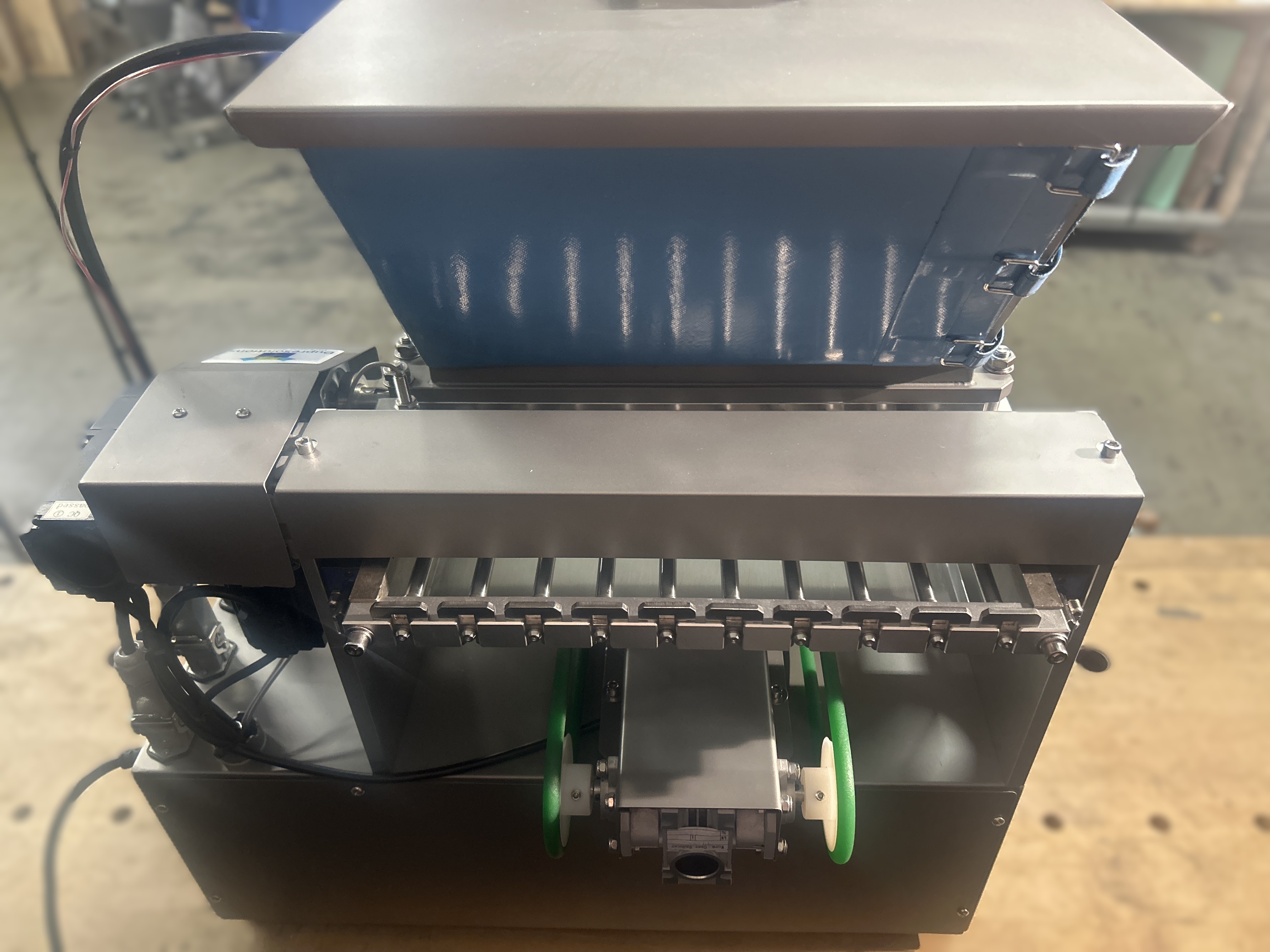

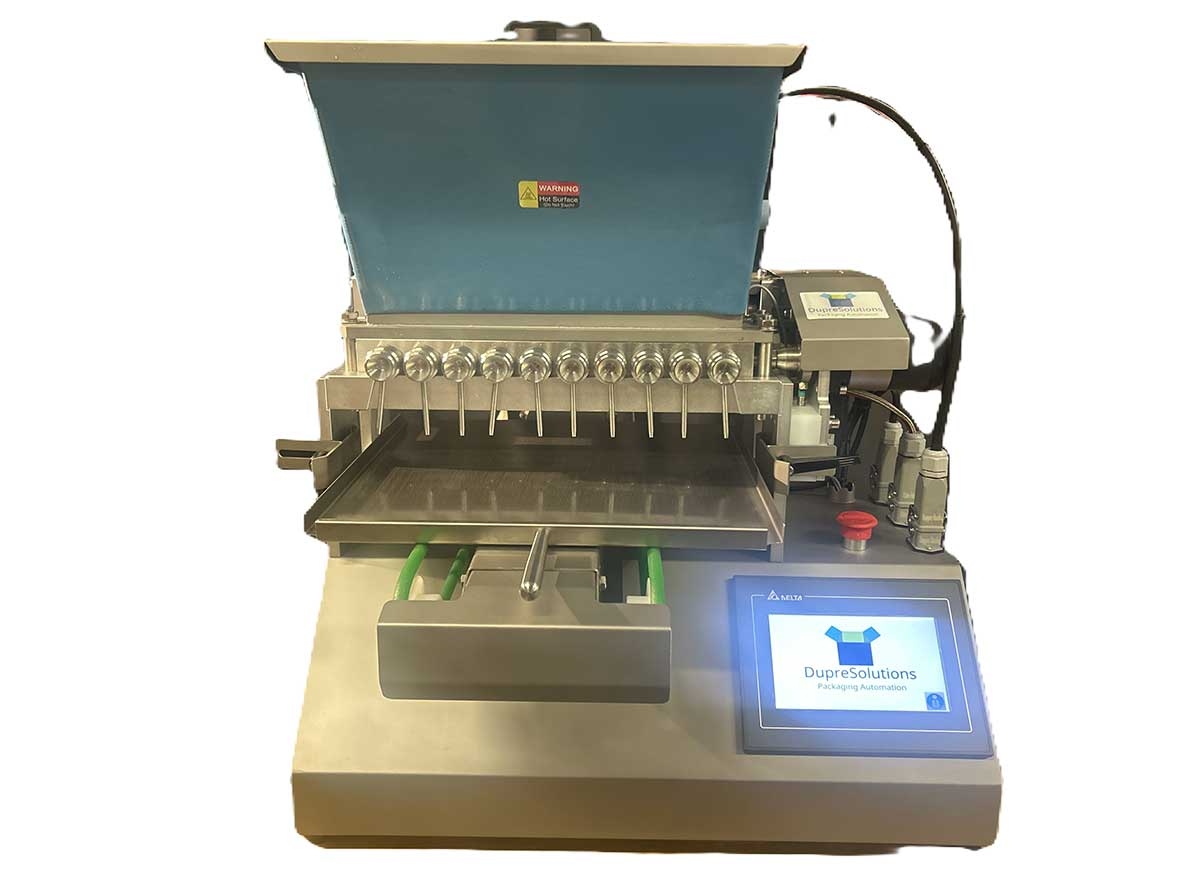

Dupre Solutions table-top depositor can deposit chocolate, gummies, caramel, hard candies and more. Comes standard with a 12 liter heated hopper, ten adjustable pistons to accomodate various mold configurations. The easy to use interface system, makes it quick to switch from polycarbonate molds to silicone molds. The DSSMD10-G works with any mold that is under 400mm wide.
The DSSMD10-G comes pre-programmed with your specific mold(s). Convenient touch screen, double heating system for the hopper and nozzles, two servor motors controlled by the PLC. Support and training included with the purchase of the machine.
Technical Parameters:
- 110v- 240v, 50-60hz
- 12 liter hopper
- Depositing times: 15-20 times per minute
- 20kg throughput
- Deposits between 2-10 grams
- Max temperature is 125c or 257f
- Dimenstions: 600 x 550 x 450mm
- Gross weight: 85kg
Call TCF Sales today for more information, the units take 24-48 hours to program and we ship within 24 hours from the U.S. Packing and crating fees will be added at time of invoicing including freight shipping. TCF Sales: 512-201-4443
