Technical Specifications
- PRODUCTION CAPACITY: from 10 to 15 Kg per batch/h of finished product.
- POWER CONSUMPTION: 4 kW - Three-phase 400V – 50 Hz (standard version)
- OVERALL DIMENSIONS:
- Width: 1600 mm
- Length: 850 mm
- Height: 1500 mm (standard version)
- Weight: 250 Kg

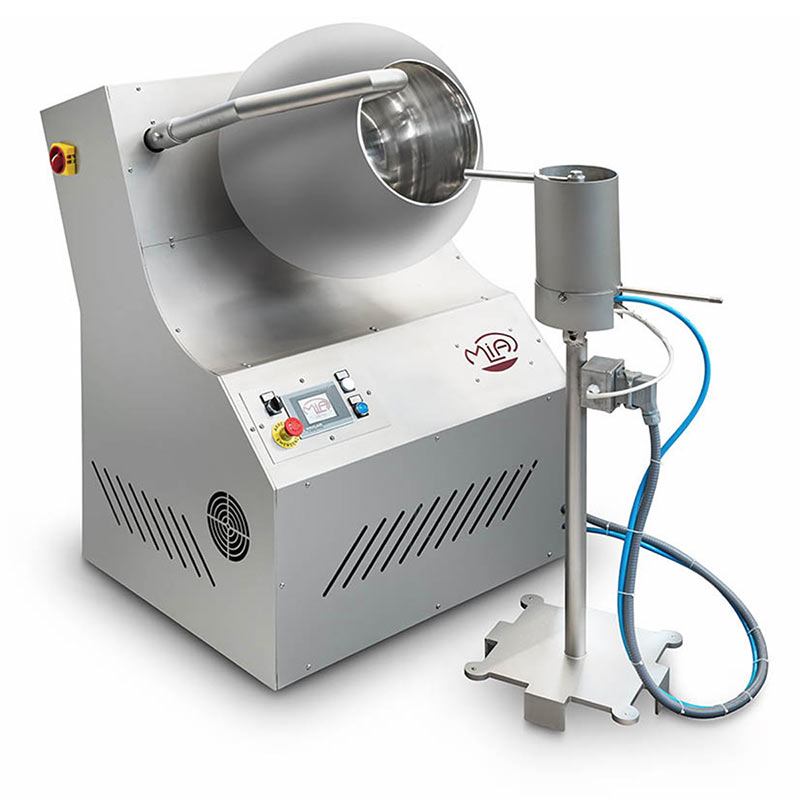

DRG-15 Panning machine, standard version
- Electronic system for adjusting the speed of the coating pan;
- Air injection group, with the option to vary the position and the inclination of the blow through the positioning of the pipe;
- Quick system for disassembly the pipe to speed up the unloading of the product and the cleaning of the coating pan
- Panning machine optional accessories
- Cooling unit with stainless steel frame used to control the temperature of the cold air input into the panning machine with digital temperature adjustment
